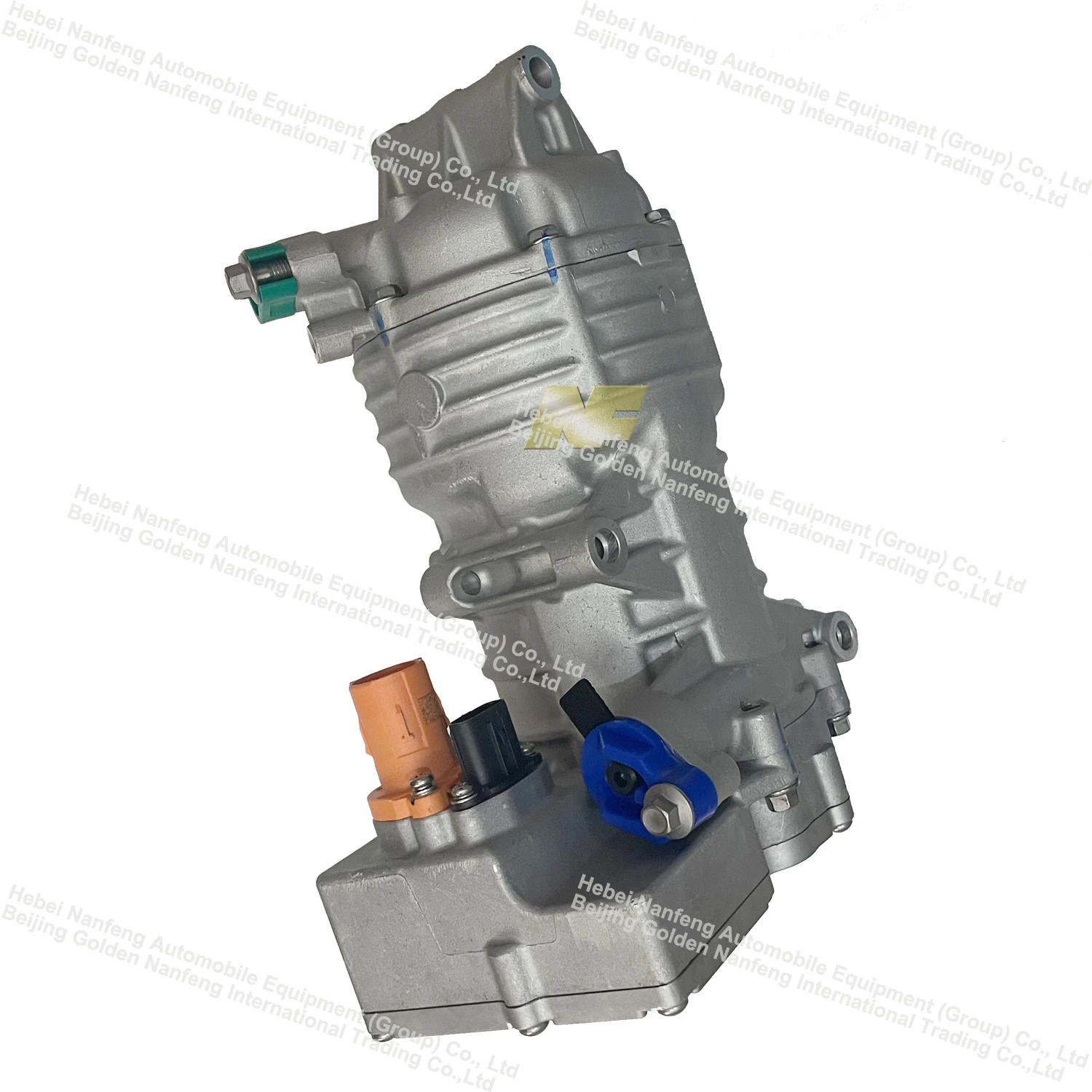

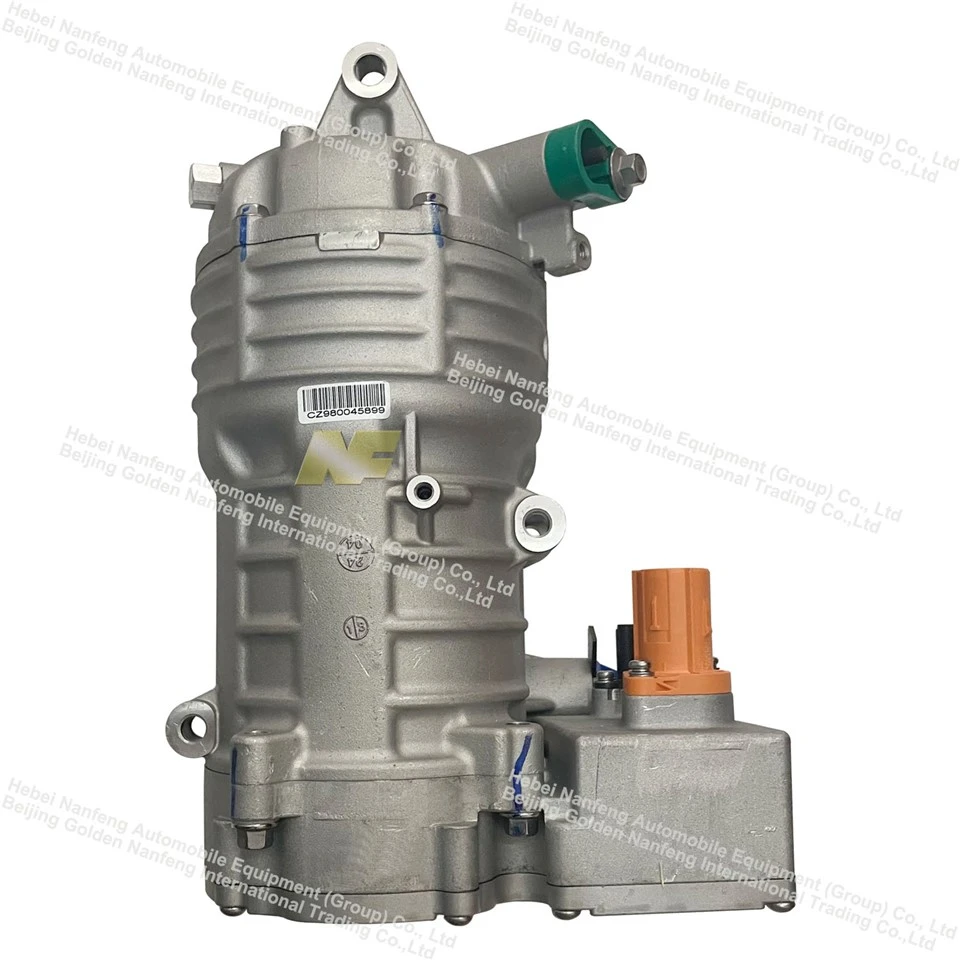

Tshiab Zog Tsheb Hluav Taws Xob Cua Txias Compressor
Raws li lub zog tseem ceeb ntawm cov tshuab cua txias niaj hnub no, hluav taws xob cua txias compressors yog kev hloov kho tshiab ntawm cov khoom siv hluav taws xob uas muaj zog thiab tau dhau los ua ib qho tseem ceeb hauv cov xwm txheej xws li tsheb tshiab thiab cov khoom siv hluav taws xob.
Hauj lwm lawm
Yog hais tias koj tab tom nrhiav rau lub zog tshiab tsheb fais cua txias compressor, txais tos rau cov lag luam wholesale khoom los ntawm peb lub hoobkas. Raws li ib qho ntawm cov ua lag luam thiab cov muag khoom nyob rau hauv Suav teb, peb yuav muab koj cov kev pabcuam zoo tshaj plaws thiab xa khoom sai. Tam sim no, xyuas cov lus hais nrog peb tus neeg muag khoom.
Khoom Description
Lub hauv paus ntsiab lus ntawm kev ua haujlwm ntawm lub tshuab hluav taws xob cua txias compressor yog ua raws li kev hloov pauv lub zog thiab kev tswj lub voj voog meej. Nws hloov hluav taws xob hluav taws xob mus rau hauv lub zog txhua yam los ntawm kev tsim- nyob rau hauv siab -kev ua haujlwm hluav taws xob, tsav cov qauv sab hauv scroll. Cov tub ntxhais scroll sib dhos muaj ib lub phaj ruaj khov thiab txav txav phaj meshing nrog nws ntawm 180℃theem sib txawv. Raws li qhov txav scroll phaj tig eccentrically nyob ib ncig ntawm lub phaj ruaj ruaj, nws tsis tu ncua rub qis - kub, qis- siab refrigerant rau hauv crescent - kab noj hniav, maj mam compressing nws mus rau hauv siab - kub, siab - siab roj ua ntej tso nws mus rau hauv lub tshuab cua txias. Cov cuab yeej tau nruab nrog lub tshuab hluav taws xob ntse tswj (ECU), uas tau hloov kho lub cev muaj zog raws li qhov xav tau ntawm qhov kub thiab txias, ua tiav qhov ntsuas kub thiab lub zog{12}} txuag kev ua haujlwm.
Cov khoom parameter
| Qauv | NFEZC45 |
| Hom | Hluav taws xob scroll |
| Cov tub yees | R290 |
| Ua haujlwm kub | -20℃~ 110 degree |
| Cia kub | -40℃~ 110 degree |
| Voltage kuj | leakage tam sim no<10mA@2000V(AC)/50HZ |
| Kev cais hluav taws xob | Ntau tshaj lossis sib npaug rau 20MQ @ 1000V (DC) |
| Kev khiav tawm | 45 CC / r |
| Ntau yam ceev | 800-8500rpm (Customizable) |
| Txoj kev txias | sucion gas txias |
| Refrigerant leakage rate | Tsawg dua lossis sib npaug li 5g / xyoo |
| Lubricating roj | PVE |
| Plhaub | Cast Aluminium Alloy txhaj tshuaj Peening |
| Tag nrho qhov hnyav (nrog rau cov roj) | Tsawg dua lossis sib npaug li 7.7kg (nrog rau cov roj) |
| Txhim kho txoj haujlwm | nyob ze lub cev muaj zog lossis iav rooj plaub |
| Suction puab loj | Φ28.4mm (Customizable) |
| Tshem tawm sab hauv loj | Φ15.35mm (Customizable) |
Cov khoom qhia meej
Daim ntawv thov teb thiab siv
Hluav taws xob cua txias compressors tau siv dav zuj zus, npog ntau qhov chaw tsav hluav taws xob. Hauv kev lag luam tsheb, lawv tau siv dav hauv cov tsheb hluav taws xob ntshiab, tsheb hluav taws xob hybrid, roj tsheb nrog nquag pib- nres, nrog rau cov tsheb thauj khoom hluav taws xob, hluav taws xob logistics tsheb laij teb, thiab cov tsheb thauj khoom me me [4]. Raws li qhov xav tau ntawm qhov sib txawv voltage, lawv tuaj yeem muab faib ua high-voltage thiab low-voltage qauv, uas tuaj yeem hloov kho rau ntau lub tsheb thiab khoom siv.
Cov yam ntxwv tseem ceeb
- Ua ntej, kev siv hluav taws xob zoo heev: Tsav nws tus kheej los ntawm hluav taws xob, nws tsis vam khom lub zog ntawm lub cav, txo cov load ntawm lub zog tseem ceeb thiab txuag lub zog. Tsis tas li ntawd, kev pib txawj ntse- nres thiab ceev kev tswj hwm ua haujlwm tau zoo txhim kho kev tsav tsheb ntawm lub zog tshiab
- Thib ob, kev ua haujlwm du thiab nyob ntsiag to: Cov qauv scroll thiab siab -kev tsim lub cev muaj zog txo qis kev vibration thiab suab nrov, tsim kom muaj kev ua haujlwm zoo dua qub, tshwj xeeb tshaj yog tsim rau siab - qauv kawg thiab cov khoom siv nrog cov suab nrov nruj.
- Thib peb, hloov tau yooj yim installation thiab compact qauv: Tsis txwv los ntawm lub cav layout, nws yuav flexibly ntsia rau hauv qhov chaw tsim nyog. Kev sib xyaw tsim ntawm lub cev muaj zog, compressor, thiab cov maub los ua rau tag nrho qhov loj me me, txuag qhov chaw teeb tsa. Tsis tas li ntawd, cov cuab yeej tau nruab nrog ntau yam kev tiv thaiv xws li undervoltage, overvoltage, overcurrent, thiab overheat tiv thaiv. Nws cov qauv kaw tag nrho ua kom muaj kev ntseeg siab heev thiab ua haujlwm ruaj khov txawm tias nyob hauv qhov chaw ua haujlwm hnyav
Cim npe nrov: Tshiab zog tsheb fais cua txias compressor, Tuam Tshoj, Hoobkas, lwm tus neeg, manufacturers, neeg muag khoom, lag luam wholesale, quotation
