2.5kw High Voltage Coolant rhaub
Lub 2.5kw WPTC-10 coolant PTC cua sov sib dhos tuaj yeem muab cua sov rau lub zog tshiab lub tsheb cockpits thiab ua tau raws li cov txheej txheem rau kev nyab xeeb defrost thiab defogging.Tam sim no, nws muab cua sov rau lwm qhov ntawm lub tsheb uas xav tau kev ntsuas kub.
Hauj lwm lawm
1.Product piav qhia

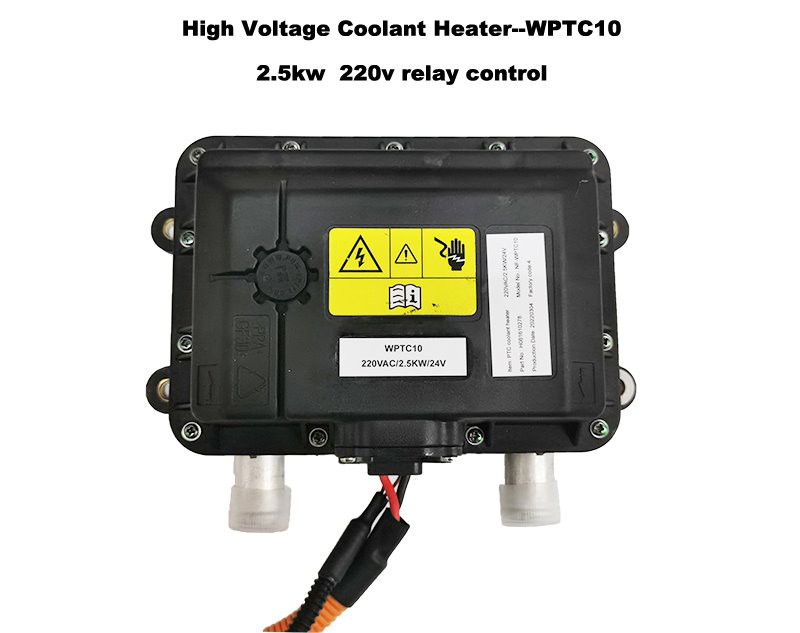

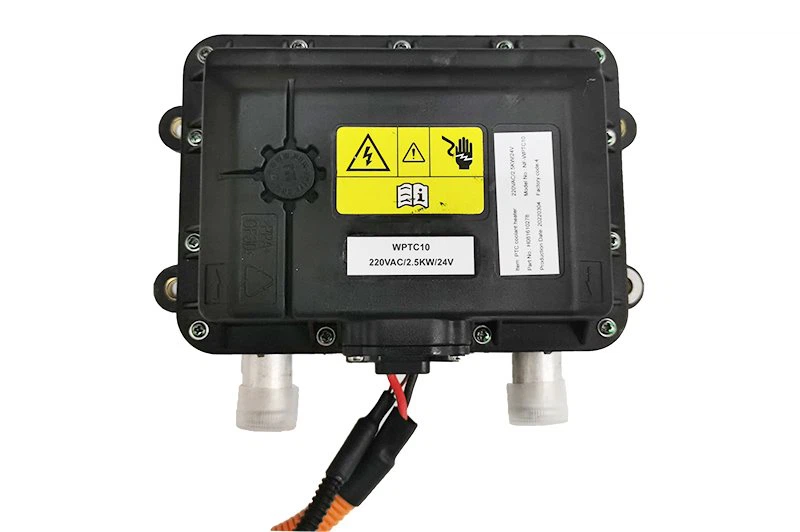

2.5KW high voltage coolant rhaub --WPTC-10
The electric High Voltage Heater (HVH) is the best heating system for plug-in hybrids (PHEV) and battery electric vehicles (BEV). Nws converts DC fais fab mov mus rau hauv tshav kub nrog xyaum tsis poob. Muaj hwj chim zoo ib yam li nws lub npe, lub tshuab hluav taws xob high-voltage no tshwj xeeb rau cov tsheb fais fab. Los ntawm kev hloov hluav taws xob hluav taws xob ntawm lub roj teeb nrog DC voltage 220v, ua kom muaj cua sov ntau, cov cuab yeej no muab kev ua haujlwm zoo, xoom-emissions sov-txhua yam thoob plaws hauv lub tsheb.
2.Specification
| Yam khoom | WPTC10-1 | |
| Cua sov tso zis | 2500 ± 10 feem pua @ 25L / min, Tin =40 degree | |
| Rated voltage (VDC) | 220V | |
| Ua haujlwm voltage (VDC) | 175-276V | |
| Controller tsawg voltage | 9-16 los yog 18-32V | |
| Tswj teeb liab | Relay tswj | |
| Heater dimension | 209.6 * 123.4 * 80.7 hli | |
| Installation dimension | 189.6 * 70mm | |
| Joint dimension | φ20 hli | |
| Cua sov hnyav | 1.95 ± 0.1kg | |
| High voltage connector | ATP06-2S-NFK | |
| Tsawg voltage connectors | 282080-1 (TE) | |

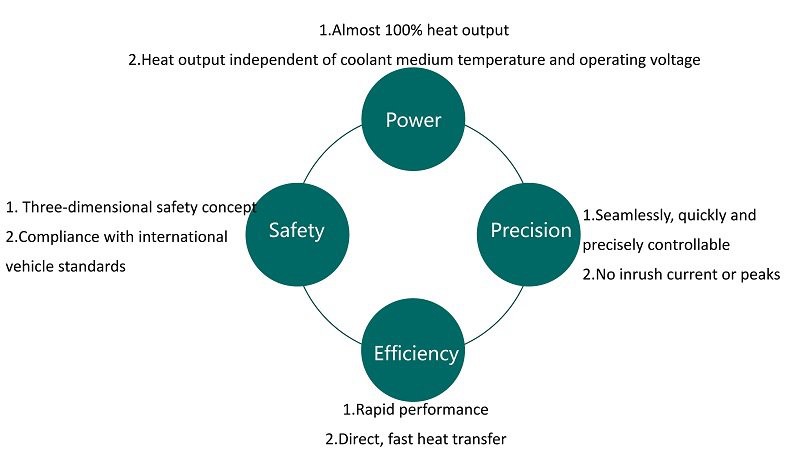

3.Technical zoo
4. Daim ntawv thov
HVH Daim Ntawv Thov Hluav Taws Xob Tsheb
HVH Daim Ntawv Thov Hluav Taws Xob Truck
HVH Daim ntawv thov hluav taws xob thauj mus los
HVH Daim Ntawv Thov Hluav Taws Xob
5. Qhov zoo
6.Company Profile
7.CE daim ntawv pov thawj
8, Peb qhov kev pabcuam
1, Muab cov qauv tsim thiab kev daws teeb meem;
2, Tele-technical kev sab laj thiab kev pabcuam;
3, Lwm yam kev pabcuam tshwj xeeb raws li tus neeg siv khoom xav tau.
4, Pub dawb rau ntawm qhov chaw ncig xyuas thiab qhia txog peb lub Hoobkas.
5, Peb tuaj yeem lav qhov khoom xa tuaj raws sijhawm ntawm cov qauv thiab cov khoom.
6, Ua raws li kev txiav txim raws sijhawm thiab ceeb toom rau cov neeg siv khoom.
7, Ntau hom kev xaiv, xa khoom sai.
8, Cov khoom siv ntau lawm thiab cov txheej txheem ntau lawm.
9, Tus nqi sib tw (Lub Hoobkas ncaj qha tus nqi) nrog peb cov kev pabcuam zoo.
10, Ntau tus qauv tsim muaj raws li cov neeg siv khoom thov.
