Electric Tsheb Cua Txias Compressor
Peb Cov Cua Txias Hluav Taws Xob Hluav Taws Xob (EACC) suav nrog cov hlau nplaum ruaj khov synchronous lub cev muaj zog, ncaj qha los ntawm lub tsheb siab -voltage roj teeb. Raws li lub zog tseem ceeb rau ob qho tib si hauv - lub tsheb txias thiab cov cua sov ua haujlwm (hauv cov twj tso cua sov), nws ua kom xis nyob sab hauv qhov kub thiab txias thaum ua kom lub zog ua haujlwm siab tshaj plaws thiab nthuav dav lub tsheb tsav tsheb.
Hauj lwm lawm
Yog tias koj tab tom nrhiav rau lub tshuab hluav taws xob cua txias compressor, txais tos rau cov khoom muag los ntawm peb lub hoobkas. Raws li ib qho ntawm cov ua lag luam thiab cov muag khoom nyob rau hauv Suav teb, peb yuav muab koj cov kev pabcuam zoo tshaj plaws thiab xa khoom sai. Tam sim no, xyuas cov lus hais nrog peb tus neeg muag khoom.

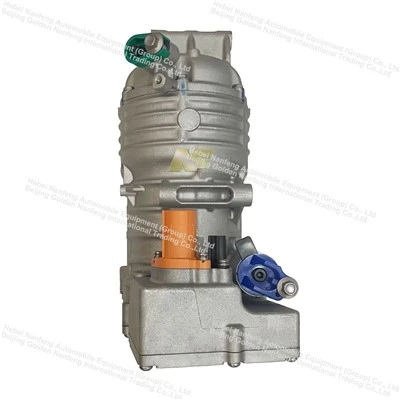

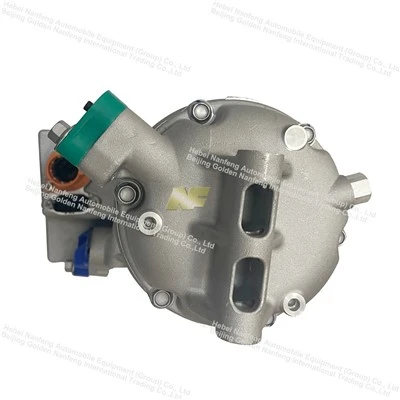

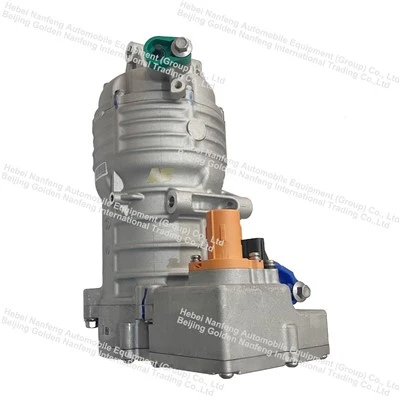

Electric Tsheb Cua Txias Compressor
Khoom Taw Qhia
Cov qauv siv tshuab (feem ntau yog hom scroll) yog tsav los ntawm kev tsim- nyob rau hauv siab -voltage ruaj khov hlau nplaum synchronous lub cev muaj zog (lossis brushless DC lub cev muaj zog) los kos rau hauv qis- siab gaseous refrigerant, compress nws mus rau hauv siab - kub thiab siab - siab gas, thiab ces tso tawm.
Cov yam ntxwv muaj pes tsawg leeg: Nws yog ib qho kev sib xyaw ua ke uas muaj cov vaj tsev nyob hauv compressor, scroll compressor mechanism, lub cev muaj zog, thiab tus maub los (Inverter), thiab tuaj yeem ua haujlwm ntawm nws tus kheej ntawm lub cav.
Qhov tseem ceeb Advantage
Qhov Zoo Tshaj Plaws
Kev txuag hluav taws xob thiab hloov pauv ntau zaus: Siv hluav taws xob tswj, nws tuaj yeem kho ceev raws li qhov xav tau, txo qis kev siv hluav taws xob.
Nyob ntsiag to thiab ua tau zoo: Ua haujlwm scroll- hom qauv, nws muaj suab nrov, tsis tshua muaj kev co, thiab ua kom txias txias.
Intelligent: Tswj los ntawm lub tsheb tswj chav tsev (VCU), thiab ua ke nrog cov twj siv hluav taws xob cua sov, nws ua tau zoo thermalkev tswj cov neeg caij tsheb thiab roj teeb.
Cov khoom specifications
Compressor Specifications
| Qauv | NFEZC45 |
| Hom | Hluav taws xob scroll |
|
Cov tub yees |
R290 |
|
Ua haujlwm kub |
-20℃~ 110 degree |
|
Cia kub |
-40℃~ 110 degree |
|
Voltage kuj |
leakage tam sim no<10mA@2000V(AC)/50HZ |
|
Kev cais hluav taws xob |
Ntau tshaj lossis sib npaug rau 20MQ @ 1000V (DC) |
|
Kev khiav tawm |
45 CC / r |
|
Ntau yam ceev |
800-8500rpm (Customizable) |
|
Txoj kev txias |
sucion gas txias |
|
Refrigerant leakage rate |
Tsawg dua lossis sib npaug li 5g / xyoo |
|
Lubricating roj |
PVE |
|
Plhaub |
Cast Aluminium Alloy txhaj tshuaj Peening |
|
Tag nrho qhov hnyav (nrog rau cov roj) |
Tsawg dua lossis sib npaug li 7.7kg (nrog rau cov roj) |
|
Txhim kho txoj haujlwm |
nyob ze lub cev muaj zog lossis iav rooj plaub |
|
Suction puab loj |
Φ28.4mm (Customizable) |
|
Tshem tawm sab hauv loj |
Φ15.35mm (Customizable) |
|
Kev ntsuas IP |
IP67 |
|
Cov khoom txwv |
ROHS ua raws, tsis muaj txhuas |
|
Mechanical siab tso tawm |
4+0.4Mpa(A) |
|
Suction ua haujlwm siab |
0.1 ~ 0.5Mpa (A) |
|
Tshem tawm kev khiav hauj lwm siab |
0.7 ~ 2.8Mpa (A) |
|
Kev ua haujlwm siab tshaj plaws |
2.8Mpa (A) |
| Corrosion kuj | 500HRs tom qab: kev ua haujlwm thiab tsawg dua 5% thaj chaw pom kev puas tsuaj |
|
Kev huv huv |
Impurity hnyav 10mg, loj 0.5mm max, foob inlets thiab qhov hluav taws xob siv plua plav kaus mom rau shipping |
Motor Specifications
|
Hom lub cev muaj zog |
PMSM |
| Tus naj npawb ntawm tus ncej | 8 |
| Txoj kev stator winding | Y- hom |
| Rated voltage | 600V (DC) |
| Kev khiav hauj lwm voltage | 400 ~ 850V (DC) |
| Rated zog | 6.5 kwm |
| Rated Ceev ntau yam | 800 ~ 8600rpm |
| Lub zog siab tshaj plaws | 7.5 kWm |
Controller Specifications
| Lub cev muaj zog tsav hom | Sine waveform |
|
Magnetic ncej nrhiav txoj kev |
Txoj hauj lwm sensorless |
|
Rated voltage (HV) |
600V (DC) |
|
Kev khiav hauj lwm voltage (HV) |
400-850V (DC) |
| Overvoltage tus nqi | (Customizable) |
| Hauv qab - tus nqi hluav taws xob | (Customizable) |
| Max input tam sim no | 12.5A (xws li 600V) |
| Max input zog | 7.5 kWm |
| Rated zog | 6.5 kWm 2 |
| Kev ntsuas hluav taws xob (LV) | DC 12/24V |
| Kev khiav hauj lwm voltage (LV) | 9 ~ 32VDC |
Cov kev xav tau ntawm qhov system
| Kev tiv thaiv siab | 2.8Mpa (pom zoo) | |
| Roj cov ntsiab lus | 3% ~ 5% (pom zoo) | |
| Cov roj seem | 40-80g | |
| Cov kev xav tau rau lub condenser | Pib | 5sCondensate kiv cua khiav rau 5 vib nas this ua ntej lub compressor pib |
| Kaw | 30sCondenser kiv cua txuas ntxiv mus rau 30 vib nas this tom qab lub compressor nres | |
| Pom zoo mounting txoj hauj lwm | Ntawm qhov qis tshaj plaws hauv qhov system (pom zoo) | |
Nrov Specifications
Kev kuaj mob:
| Tshem tawm P. | Suction P. | Sub Cooled | Super kub | Ambient kub |
| 1.5Mpa (A) | 0.3Mpa (A) | 5 degree | 10 degree | ES |
Performance thiab Nosie nkhaus:
