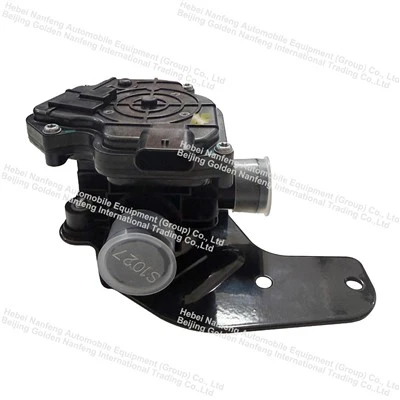

High Flow 3-Txoj Kev Hloov Valve Rau Lub Tsheb Hluav Taws Xob BTMS Thermal Management
3-Txoj Kev Coolant Valve yog ib qho tseem ceeb ntawm cov khoom siv hluav taws xob tsim hluav taws xob rau cov roj teeb Thermal Management Systems (BTMS) hauv cov tsheb hluav taws xob (EVs), hybrid electric tsheb (HEVs), thiab daim ntawv thov cia lub zog. Qhov kev ua tau zoo ntawm lub tshuab hluav taws xob no tau tswj hwm cov dej txias ntws thiab kev faib tawm, ua kom tsis muaj kev sib hloov lossis kev tswj hwm ntawm ntau lub thermal circuits - suav nrog cov roj teeb txias, chiller bypass, radiator voj, lub zog hluav taws xob ua kom txias, thiab kev sib koom ua ke hauv tsev.
Hauj lwm lawm
Yog tias koj tab tom nrhiav rau lub siab ntws 3-txoj kev hloov lub valve rau lub tsheb fais fab btms thermal tswj, txais tos rau cov khoom lag luam wholesale ntawm peb lub hoobkas. Raws li ib qho ntawm cov ua lag luam thiab cov muag khoom nyob rau hauv Suav teb, peb yuav muab koj cov kev pabcuam zoo tshaj plaws thiab xa khoom sai. Tam sim no, xyuas cov lus hais nrog peb tus neeg muag khoom.
Hluav taws xob 3 Txoj Kev Coolant Control Valve rau BTMS hauv Hluav Taws Xob Tsheb
Hluav taws xob 3 Txoj Kev Coolant Control Valvepiav qhia
Peb lub siab -kev ua tau zoo 3- Txoj Kev Coolant Control Valve yog tsim tshwj xeeb rau Cov Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob (BTMS) hauv cov tsheb hluav taws xob (EVs) thiab kev siv hybrid. Tsim los kom tswj tau qhov tseeb thiab cuam tshuam cov dej txias ntws, lub valve no ua rau muaj kev hloov pauv ntawm cov cua txias sib txawv - xws li roj teeb pob txias, chiller bypass, radiator voj, lossis cua sov hom - kom lub roj teeb ua haujlwm nyob rau hauv qhov ntsuas kub zoo txhua lub sijhawm.
 |
 |
Qhov teeb meem vs. Solution
| Cov Teeb Meem Valve | Peb qhov kev daws teeb meem hwm |
| Kev tswj tsis raug ua rau kub hloov pauv (± 2 degree) | Kev sib npaug feem pua ntawm cov yam ntxwv ua kom ruaj khov, cov zis tawm (± 0.5 degree) |
| Cov dej ntws tawm ntawm qhov chaw nres nkoj kaw pov tseg lub zog (bypass flow) | Npuas- nruj kaw- tawm (tsawg dua lossis sib npaug li 0.1% to) tiv thaiv lub zog poob |
| Short lifespan nyob rau hauv chilled dej daim ntaub ntawv (condensation, corrosion) | Stainless hlau qia + tooj dag / bronze lub cev tiv thaiv corrosion, 100, 000+ cycles |
Cov txiaj ntsig tseem ceeb muaj xws li:
Precise Flow Control
Txhawb kev qhib/tawm kev hloov pauv lossis kev cai sib faib rau kev tswj xyuas qhov kub thiab txias tsawg kawg nkaus - ntws tawm.
Kev ua kom muaj zog hluav taws xob
Muaj nyob rau hauv 12V lossis 24V DC versions nrog lub sijhawm teb ceev thiab siv hluav taws xob tsawg; xaiv tau PWM lossis LIN/CAN kev sib txuas lus rau kev sib koom ua ke ntse.
Kev khiav hauj lwm dav
Tsim los tiv thaiv huab cua huab cua ib puag ncig los ntawm -40℃mus rau +120 degree, nrog kev ua haujlwm zoo rau kev co, corrosion, thiab glycol-based coolants.
Compact & Lightweight Design
Optimized rau qhov chaw - txwv BTMS modules, yooj yim installation nyob rau hauv ib qho kev taw qhia, thiab tsawg heev cuam tshuam rau lub cev hnyav.
High Durability & Reliability
IP67- ntsuas kev tiv thaiv (yeem), tsis tshua muaj siab poob qis, kev ua haujlwm zoo dua sealing, thiab lub neej ua haujlwm ntev tau lees paub rau cov ntawv thov EV hnyav.
Versatile Configurations
3 txoj kev chilled coolant li qub tuaj yeem tsim nyob rau hauv txoj kab uas hla ntawm 16Øs txog Ø25, tsuas yog yuav tsum tau hloov pauv ntawm cov yeeb nkab qhov ntev.The Ø25 dej valve tso cai rau kev tswj tus nqi ntawm 5 L / MIN mus rau 100 L / MIN..
Yuav Ua Li Cas: Kev piav qhia
Txoj Cai Kev Ua Haujlwm
Ib txoj kev 3 txoj kev chilled coolant valve tswj cov dej txias ntws los ntawm redirecting es tsis txhob tso tseg - tuav lub zog tas li thaum ntsuas kub.
Technical Specifications
| Tsis muaj | Parameter npe | Tus nqi |
| 1 | Dej valve sab hauv to | Tsawg dua lossis sib npaug li 20mL / min (kuaj dej), 30kPa siab sib txawv |
| 2 | Dej valve sab nraud to | Tsawg dua los yog sib npaug li 5mL / min (gas test), 340kPa (gauge siab) |
| 3 | Hom hloov lub sijhawm teb | <10s |
| 4 | Tswj txoj kev | LIN |
| 5 | Standard kev khiav hauj lwm voltage | 24V |
| 6 | Kev khiav hauj lwm voltage | 20V~30V |
| 7 | Kev ua neej nyob | 300,000 hloov lub voj voog |
Theoretical flow resistance nkhaus ntawm 3 txoj kev chilled coolant valve (100% tag nrho qhib)
| Nruab nrab | 50% ethylene glycol |
| Kub | 25 degree |
| Sab nraud txoj kab uas hla ntawm cov yeeb nkab | Φ25 |
| Ntws | 5-50L / min |
3 txoj kev chilled coolant valve showcase
Daim duab qhia chaw teeb tsa tau qhia hauv qab no (tseem tso cai rau lub kaum sab xis).
Cov kev cai sib txuas nrog lub tsheb:
Qhov zoo tshaj plaws rau cov kua ua kua-Cov Roj Teeb Txias Hluav Taws Xob (BEV), cov tsheb thauj khoom hluav taws xob ua lag luam thiab cov tsheb npav, roj teeb lub zog khaws cia (BESS), thiab roj cell thermal tswj. Nws ua tau zoo nyob rau hauv cov xwm txheej uas yuav tsum tau ua kom muaj kev ua kom txias txias, xws li kev ua haujlwm / passive txias hom, pov tseg thaum tshav kub kub rov qab, thiab ntau - voj thermal ntsuas.
Txawm hais tias koj yog OEM, Tier-1 tus neeg xa khoom, lossis tus neeg koom ua ke, peb lub 3-Txoj Kev Coolant Valve muab kev txhim khu kev qha, ua haujlwm tau zoo, thiab tus nqi-zoo thermal tswj kev daws teeb meem uas pab koj lub tshuab EV ua tau zoo dua thiab ua raws li cov qauv kev lag luam nruj.
Peb muab cov kev pabcuam OEM / ODM hloov tau, suav nrog kev cai chaw nres nkoj teeb tsa, cov lus qhia tshwj xeeb, thiab kev txhawb nqa tag nrho. Cov qauv thiab cov ntaub ntawv ntxaws ntxaws muaj nyob rau thaum thov.
daim ntawv pov thawj
✅ Cov Khoom Siv Hluav Taws Xob Cov Lus Qhia
✅ Raws li RoHS (ib puag ncig tus phooj ywg)
✅ IATF 16949 certified manufacturing
✅Txoj kev ua raws cai
Logistics & Payment Transparency
Peb tuaj yeem txhawb nqa ntau hom kev xa khoom thiab kev them nyiaj.
Kev Them Nyiaj: T / T, PayPal, L / C, Western Union.
Shipping: DHL, FedEx, UPS, Cua freight, hiav txwv freight (FCL / LCL).
Tus me nyuam: Samples hauv 7-10 hnub. Kev txiav txim ntau hauv 30-35 hnub.
Tuam txhab Profile
Hebei Nanfeng Automobile Equipment (Group) Co., Ltdyog ib pawg vertically integrated industrial pawg tshwj xeeb hauv hluav taws xob tsheb thermal tshuab. Nrog1 International trading tuam txhab(Beijing Golden Nanfeng) thiab5 advanced manufacturing chaw, peb xa qhov kawg-rau- xaus kev tswj hwm qhov zoo, tus nqi, thiab kev tsim kho tshiab.
📍 Lub hauv paus:Wumaying Industrial Area, Nanpi County, Hebei, Suav
🏭 Facility Size: 80,000 m²
🌍 Export Markets:Asia, Europe, North & South America
Hu rau Action
- Npaj kom meej meej li qub rau koj qhov project HVAC?
- Tau txais cov lus qhia ntxaws ntxaws, BIM qauv, thiab tus nqi raws li koj xav tau.
