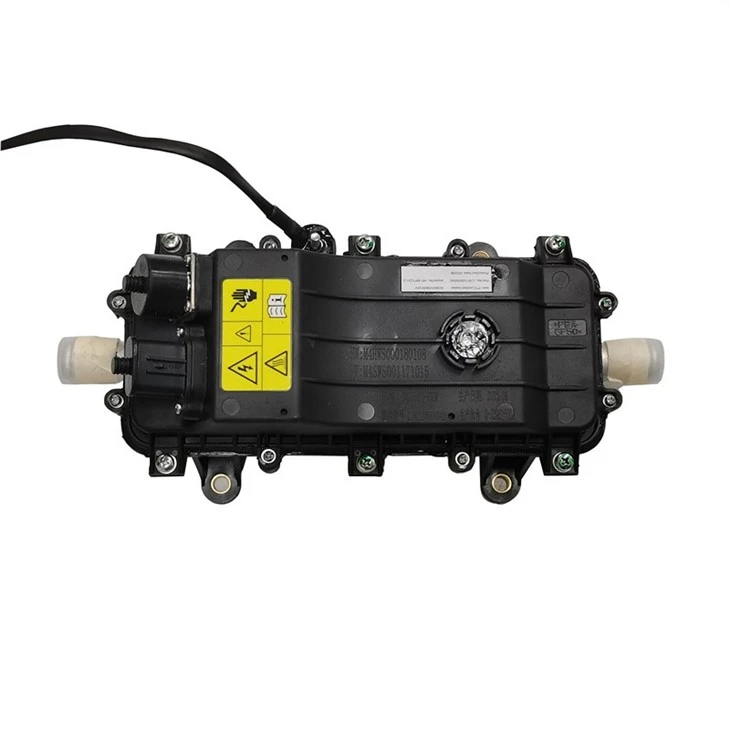

PTC High Voltage Coolant rhaub
Lub tshuab hluav taws xob siab txias txias yog siv los ua cua sov rau cov neeg caij tsheb, defrosting thiab tshem tawm pos huab ntawm lub qhov rais, los yog preheating roj teeb thermal tswj system roj teeb, kom tau raws li cov kev cai sib xws, kev ua haujlwm.
Hauj lwm lawm
PTC High Voltage Coolant rhaub
Product Description
The electric High Voltage Heater (HVH) is the best heating system for plug-in hybrids (PHEV) and battery electric vehicles (BEV). Nws converts DC fais fab mov mus rau hauv tshav kub nrog xyaum tsis poob.
Hwj chim zoo ib yam li nws lub npe, lub tshuab hluav taws xob high-voltage no tshwj xeeb rau cov tsheb fais fab. Los ntawm kev hloov hluav taws xob hluav taws xob ntawm lub roj teeb nrog DC voltage, xws li 300 txog 750v, rau hauv cov cua kub ntau, cov cuab yeej no muab kev ua haujlwm zoo, xoom-emissions sov-txhua yam thoob plaws hauv lub tsheb.
Khoom Parameter
| Yam khoom | WPTC01-1 | WPTC01-2 |
| Cua sov tso zis | 6kw @ 10L / min, T_ hauv 40 degree | 6kw @ 10L / min, T_hauv 40 degree |
| Rated voltage (VDC) | 350V | 600V |
| Ua haujlwm voltage (VDC) | 250-450 | 450-750 |
| Controller tsawg voltage | 9-16 los yog 18-32V | 9-16 los yog 18-32V |
| Tswj teeb liab | CAN | |
| Heater dimension | 232.3 * 98.3 * 97mm | 232.3 * 98.3 * 97mm |
| Installation dimension | 144*128*119 | 144*128*119 |
| Joint dimension | φ25, φ20mm | φ25, φ20mm |
| High voltage connector | PL082X-6.1-2.5, PL082X-6. | |
| Tsawg voltage connectors | A02-ECC320Q60A1-LVC-4 (a)(Sumitomo adaptive drive module) | |
| Cua sov hnyav | 2.4kg 2 | 2.4kg 2 |
Ceeb toom:
High voltage tsis muaj peev xwm tiv thaiv kev rov qab sib txuas. High voltage rov qab kev twb kev txuas yuav ua rau uncontrolled cua sov. Kev sib txuas hluav taws xob siab rov qab tuaj yeem ua rau PTC kev puas tsuaj, tuaj yeem ua rau lub tsheb tsis raug them ua ntej thiab tsis tuaj yeem pib, thiab tej zaum yuav ua rau lub precharge resistor hlawv!
Cua txias tswj lub moj khaum
Ua kom tiav cov lus txib tawm ntawm lub tshuab cua txias.
Lub vaj huam sib luag cua txias xa cov neeg siv cov lus txib ua haujlwm rau tus tswj los ntawm CAN kev sib txuas lus lossis ON / OFF PWM.
Tom qab dej cua sov PTC maub los tau txais lub teeb liab hais kom ua, nws tig rau PTC hauv PWM hom raws li lub zog xav tau.
Tsim qhov zoo:
①Siv 4-channel PWM tswj hom, lub busbar inrush tam sim no me me, thiab qhov yuav tsum tau rau cov relay nyob rau hauv lub tsheb Circuit Court yog tsawg.
②PWM hom tswj ua kom muaj kev hloov pauv tsis tu ncua ntawm lub zog.
③ Cov hom kev sib txuas lus CAN tuaj yeem tshaj tawm cov xwm txheej ua haujlwm ntawm tus maub los, uas yooj yim rau kev tswj tsheb thiab kev saib xyuas.
Product details
Qhov zoo
Daim ntawv pov thawj
Daim ntawv thov
