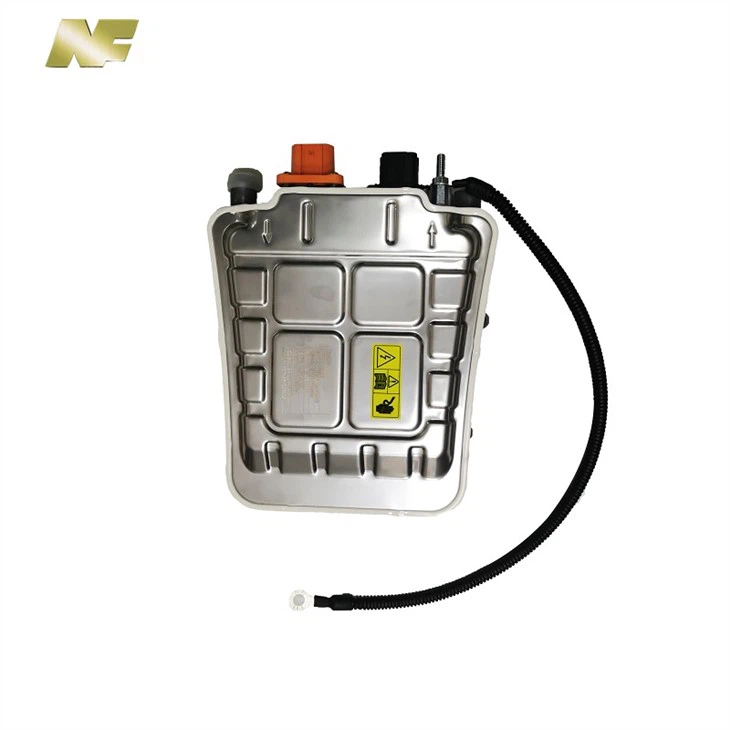

Hvc High Voltage Battery Coolant Rhaub
Lub tshuab hluav taws xob siab txias txias yog siv los ua cua sov rau cov neeg caij tsheb, defrosting thiab tshem tawm pos huab ntawm lub qhov rais, los yog preheating roj teeb thermal tswj system roj teeb, kom tau raws li cov kev cai sib xws, kev ua haujlwm.
Hauj lwm lawm
Hvc High Voltage Battery Coolant Rhaub
1, Khoom Taw Qhia
Lub tshuab cua sov yog siv los ua cua sov rau cov neeg caij tsheb, defrosting thiab tshem tawm pos huab ntawm lub qhov rais, los yog preheating roj teeb thermal tswj system roj teeb, kom ua tau raws li cov cai, kev ua haujlwm.
2, Khoom Parameter
| Yam khoom | W09-1 | W09-2 |
| Rated voltage (VDC) | 350 | 600 |
| Ua haujlwm voltage (VDC) | 250-450 | 450-750 |
| Rated zog (kW) | 7 (1 ± 10%) @ 10L / min, T_hauv =60ºC, 350V | 7 (1 ± 10%) @ 10L / min, T_hauv =60ºC, 600V |
| Impulse tam sim no (A) | Tsawg dua los yog sib npaug rau 40 @ 450V | Tsawg dua los yog sib npaug rau 25 @ 750V |
| Controller tsawg voltage (VDC) | 9-16 los yog 16-32 | 9-16 los yog 16-32 |
| Tswj teeb liab | CAN2.0B,LIN2.1 | CAN2.0B,LIN2.1 |
| Tswj qauv | Gear (5th gear) or PWM | Gear (5th gear) or PWM |
3, Tsim nyog tej yam kev mob rau lub rhaub:
(1) Lub tshuab cua sov yog tswj los ntawm CAN kev sib txuas lus
(2) High voltage fais fab mov
(3) Tsawg voltage fais fab mov (BATT) los yog Kl15 (ignition hloov voltage), Kl31 (GND)
(4) Lub tshuab cua sov yuav tsum tau teeb tsa lub siab voltage interlock circuit
(5) Lub tsheb yuav tsum tau nruab nrog cov cuab yeej ntsuas hluav taws xob los saib xyuas:
Tshaj (hauv) voltage tiv thaiv
Kev tiv thaiv luv luv (tam sim no-txhim kho fuse hauv lub thawv xa khoom)
Kev tiv thaiv dej
Interlock teb
(6) Lub tshuab hluav taws xob siab hluav taws xob yuav tsum tau nruab nrog 30A tam sim no-txheej fuse
(7) Nws yuav tsum tau ua kom ntseeg tau tias lub zog hluav taws xob siab tsis muaj qhov rov qab polarity
(8) Lub tsheb yuav tsum tau muab tua thaum muaj hluav taws xob overvoltage tshwm sim
(9) High voltage input yuav tsum tau precharged
(10) Lub high voltage input yuav tsum tau nruab nrog ib tug relay, thaum muaj ib tug loj txhaum tshwm sim, lub high voltage yuav raug txiav tawm yam tsis muaj kev cuam tshuam kev nyab xeeb ntawm tag nrho lub tsheb.
4, Kev teeb tsa khoom
PTC hluav taws xob rhaub module muaj PTC cua sov Cheebtsam, controllers thiab sab hauv pipelines. Cov cua sov tivthaiv tau muab tso rau hauv aluminium tuag casting, aluminium tuag casting thiab cov yas casing tsim ib qho kev kaw cov raj xa dej, thiab cov kua dej txias ntws los ntawm lub cev cua sov hauv cov qauv me me.
5, Khoom Advantage
6, Kev thov khoom
7, Peb Qhov Zoo
(1) Yooj yim rau installation
(2) Ua haujlwm du tsis muaj suab nrov
(3) Kev tswj hwm nruj nruj
(4) Cov khoom siv zoo tshaj
(5) Kev pabcuam tshaj lij
(6) OEM / ODM kev pabcuam
(7) Muab cov qauv
(8) Cov khoom zoo
1) Ntau hom kev xaiv
2) Tus nqi sib tw
3) Kev xa khoom sai
Cim npe nrov: hvc high voltage roj teeb coolant rhaub, Tuam Tshoj, Hoobkas, lwm tus neeg, manufacturers, neeg muag khoom, lag luam wholesale, hais
