High Voltage Thick Film Coolant Rhaub Rau EV Tsheb
NF Group yog lub chaw tsim hluav taws xob loj tshaj plaws hauv Suav teb. Tam sim no peb tau tshaj tawm cov khoom tshiab: 7-15 kW tuab zaj duab xis hluav taws xob rhaub, uas tau muab rau hauv cov khoom siv. Cov khoom no muaj qhov zoo ntawm ultra-siab thermal efficiency, muaj zog siab tsis kam, ultra- lub neej ntev, ultra-kev nyab xeeb, thiab cov qauv yooj yim.
Hauj lwm lawm
Yog hais tias koj tab tom nrhiav rau high voltage tuab zaj duab xis coolant rhaub rau ev tsheb, txais tos rau cov lag luam wholesale cov khoom los ntawm peb lub hoobkas. Raws li ib qho ntawm cov ua lag luam thiab cov muag khoom nyob rau hauv Suav teb, peb yuav muab koj cov kev pabcuam zoo tshaj plaws thiab xa khoom sai. Tam sim no, xyuas cov lus hais nrog peb tus neeg muag khoom.

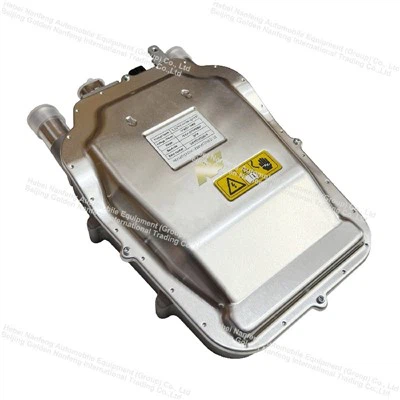

High Voltage Thick Film Coolant Rhaub Rau EV Tsheb
Khoom Description
PTC tuab zaj duab xis tso cua sov rau lub zog tshiab tsheb yog lub cim tshiab ntawm siab -cov khoom siv hluav taws xob ua kom sov uas ua ke nrog qhov zoo ntawm qhov kub thiab txias coefficient ntawm PTC nrog cov tshuab luam ntawv tuab. Piv nrog cov tsoos PTC ceramic heaters, lawv muaj qhov zoo ntawm cov lus teb ceev, thermal efficiency, thiab siab -siab adaptability, ua rau lawv yog ib tug tseem ceeb upgrade tov rau lub thermal tswj system ntawm tshiab zog tsheb.
Khoom Parameter
| OE NO. | HVCH-Q15 |
| Rated zog | 15 KW (OEM 7KW ~ 15KW) |
| Rated Voltage | DC600V (OEM 350V ~ 890V) |
| Voltage Ntau | DC400V-DC800V |
| Tswj Tsawg Voltage | 9V~32V |
| Tswj Teeb Meem | CAN (Compatible nrog J1939) |
| Qhov loj me (L * W * H) | 277.5mmx198mmx54mm |
| Inlet thiab Outlet Dej Joint Dimension | Ø 25 mm |
Khoom Loj
Qhov tseem ceeb ntawm kev ua tau zoo (piv rau cov tsoos PTC ceramics)
| Performance indicators, As | PTC Thick Film Heater | Tsoos PTC ceramic rhaub |
| Startup teb | Tag nrho lub zog tso zis tsis pub dhau 30ms | Mus txog lub zog tag nrho hauv kwv yees li 28 vib nas this |
| Thermal efficiency | Tshaj 95%, 7% siab dua li cov txheej txheem ib txwm muaj. | 85%-90% |
| High -voltage adapter | Rwb thaiv tsev chav kawm 4000V, tau tshaj 800V / 1500V platforms. | Tsis txaus siab -voltage kev ruaj ntseg redundancy |
| Kev tswj qhov kub thiab txias | PWM kaw -loop precise temperature control | Nws feem ntau ua rau tus kheej - txwv kev tswj qhov kub thiab txias, nrog rau kev tswj qhov kub thiab txias. |
| Ntim thiab hnyav | Me me, lub teeb yuag, yooj yim rau kev koom ua ke | Lub ntim loj dua |
| Kev cia siab rau lub neej | Tsis muaj kev pheej hmoo ntawm ceramic tawg, muaj zog tiv thaiv kev co thiab cuam tshuam | Ceramics yog nquag tawg thiab feem ntau muaj kev ntseeg siab tsawg. |
Cov Khoom Paub meej
Cov kev siv tseem ceeb ntawm cov tsheb tshiab zog
Txias cua sov
Ob qho tib si huab cua-txias thiab dej- cov cua kub cua txias ua kom cua sov sai, txhim khu kev tsav tsheb thiab cov neeg caij tsheb hauv lub caij ntuj no.
Defrosting thiab defogging
Ua kom sov lub iav sai sai kom muaj kev nyab xeeb ntawm kev tsav tsheb.
Roj teeb thermal tswj
Ua kom lub roj teeb ua kom sai sai rau qhov zoo tshaj plaws ntawm 15-25℃ntawm qhov kub thiab txias, txhim kho kev them nqi thiab roj teeb lub neej, thiab txo qis qhov kub thiab txias.
800V High Voltage Platform
Kho kom haum rau siab -voltage architecture, nws tau dhau los ua qhov kev xaiv tseem ceeb rau kev tswj xyuas thermal ntawm cov tiam tom ntej ntawm hluav taws xob tsheb.
Cov khoom pov thawj
Peb lub tuam txhab
FAQ
1. Q: Dab tsi yog qhov zoo ntawm tuab zaj duab xis hluav taws xob cua sov piv nrog cov tsoos PTC rhaub?
A: Thick film heaters have higher energy efficiency (up to 95% or more), faster heating speed (second response), smaller size, and high power density, which are suitable for the strict requirements of new energy vehicles on space and energy consumption.
2. Q: Dab tsi tshiab lub zog tsav tsheb tsim nyog rau lub zog 7-15kW?
A: 7-10kW feem ntau yog siv rau cov neeg caij tsheb roj teeb / chav tsev cua sov, 10-15kW yog tsim rau cov tsheb lag luam lossis thaj chaw txias heev, thiab tuaj yeem ua tau raws li cov kev xav tau ntawm cov roj teeb muaj peev xwm loj rau kev kub ceev ceev thiab cua sov hauv tsheb.
3. Q: Yuav ua li cas los daws qhov teeb meem ntawm kev pib- ncua sij hawm nyob rau hauv ib puag ncig qis - kub?
A: Lub tshuab cua sov ua kom sov ncaj qha rau cov cua txias / cua thiab tuaj yeem tso cua sov hauv 3-5 vib nas this. Nws koom tes nrog lub roj teeb tswj qhov system (BMS) preheating lub tswv yim kom tshem tawm cov fwj ntawm qhov qis-kub txias pib.
4. Q: Kev tswj qhov kub thiab txias tuaj yeem ua tiav?
A: Ntau lub tshuab cua sov tuaj yeem tsim los tswj nws tus kheej ntawm cov chaw sib txawv (xws li cov roj teeb pob, pem hauv ntej thiab nram qab ntawm lub tsev), tab sis nws yuav tsum tau ua kom haum rau cov kav dej thermal tswj lossis cov pa hluav taws xob tsim ntawm tag nrho lub tsheb.
5. Q: Cov kev taw qhia yav tom ntej ntawm kev txhim kho technology yog dab tsi?
A: Ua kom pom tseeb ntawm lub zog siab dua (＞ 20kW / L), qhov kub thiab txias sib xws (-40℃~ 150 degree), thiab kev sib koom ua haujlwm zoo nrog cov twj siv hluav taws xob kom txo tau lub zog siv ntxiv.
Peb Exhibition
Peb tau koom nrog ntau thoob ntiaj teb tshiab zog tsheb qhov chaw exhibitions. Daim duab hauv qab no qhia peb kev sib txuas lus nrog cov neeg siv khoom ntawm qhov kev nthuav qhia, thiab peb tau mus txog kev cog lus kev koom tes nrog ntau tus neeg siv khoom ntawm qhov kev nthuav qhia.
