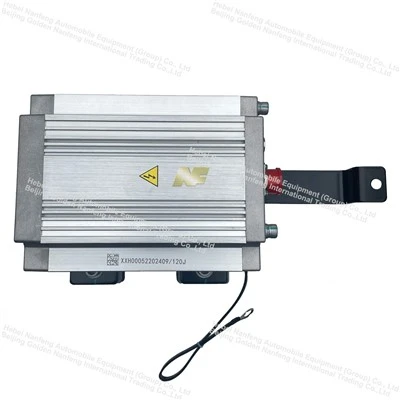

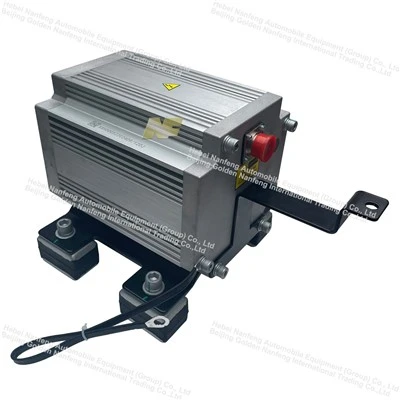

Electric Truck Steering Tsav
Hebei Nanfeng Group muaj keeb kwm ntawm ntau tshaj 30 xyoo hauv kev tsim cov khoom siv hluav taws xob. Peb lub tuam txhab yog cov chaw tsim khoom tsheb loj tshaj plaws hauv Suav teb. Lub kauj tsav tsheb tshwj xeeb yog tsim los rau cov tsheb fais fab thiab cov tsheb thauj khoom hluav taws xob, thiab txhawb OEM customization.
Hauj lwm lawm

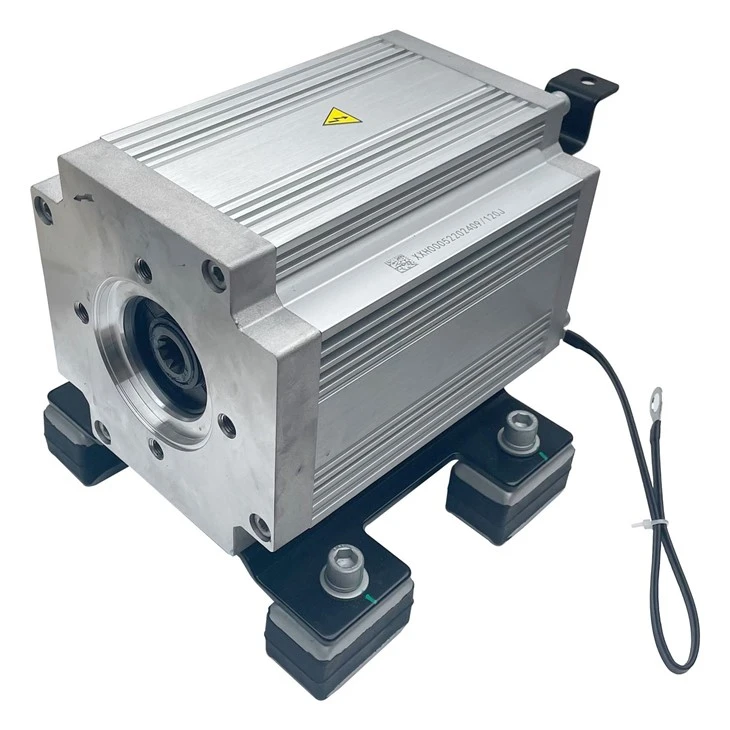

Electric Truck Steering Pump
Khoom Description
Khoom nta
1. Compact qauv, me me, thiab lub teeb yuag
2. Cov qauv yooj yim, kev ua haujlwm siab, thiab kev ua haujlwm ntev;
3. Lub zog muaj zog thiab zoo cua sov dissipation los ntawm huab cua txias;
4. Yooj yim tswj txoj kev thiab muaj zog tshaj lub peev xwm;
5. Kev tiv thaiv qib: IP67 thiab siab dua, qib rwb thaiv tsev: H;
6. Tsis tshua muaj suab nrov, txuag hluav taws xob, thiab kev tiv thaiv ib puag ncig;
7. Cov khoom siv sib xyaw ua ke muaj zog muaj peev xwm teb thaum muaj xwm txheej ceev thiab tsis muaj kev ncua sij hawm hloov;
Ua hauj lwm hauv paus ntsiab lus ntawm lub tsheb fais fab steering motor
Lub hauv paus ntsiab lus ua haujlwm ntawm lub tsheb fais fab steering lub cev muaj zog yog ua raws li electromagnetic induction. Thaum tus tsav tsheb tig lub kauj tsheb, lub kauj tsheb sensor xa lub kauj lub kauj lub kaum sab xis thiab kev taw qhia mus rau lub khoos phis tawj tsheb. Raws li cov ntaub ntawv no, lub khoos phis tawj suav nrog lub zog pabcuam uas lub kauj tsav yuav tsum tau muab thiab tom qab ntawd xa cov teeb liab mus rau lub kauj tsav.
|
Steering motor sib dhos ua haujlwm tsis zoo |
|||
|
Tsav qauv |
EHPS-1018R3/19XB-010 |
||
|
Rated zog (KW) |
3 |
Peak zog (KW) |
7.5 |
|
Guangdong taag voltage (VAC) |
237 |
Kub tswj hom resistor |
Tsis muaj |
|
Rated tam sim no (A.) |
12 |
Number of motor ncej: |
8 ncej (4 khub ntawm lub rooj tsavxwm) |
|
Peak tam sim no (A) |
33 |
Stator hlau tsis kam (0) |
0.8 (ntawm 20 degree) |
|
Rated zaus (HZ) |
66.67 |
Rated ceev (r / min) |
1000 |
|
Peak torque (Nm) |
72 |
Rated torque (Nm) |
30 |
|
D-axis inductance|mH) |
6.88 |
Q-axis inductance|mH) |
10.87 |
|
Rated efficiency (%) |
Ntau dua lossis sib npaug li 92% |
Hnub ua hauj lwm |
S2 ~ 3 feeb |
|
Rwb thaiv tsev theem |
H qib |
Txoj kev ua kom txias: |
ntuj txias |
|
Qib tiv thaiv |
IP67 |
Ua haujlwm qhov kub thiab txias: |
-40 degree ~ +85 degree |
|
Lub cev muaj zog: |
SVC txoj hauj lwm sensorless ruaj khov hlau nplaum synchronous lub cev muaj zog |
||
Cov Khoom Paub meej
Lub tsheb fais fab lub kauj tsheb yog ib qho tseem ceeb ntawm lub tsheb. Lub tsheb fais fab kauj lub cev muaj zog tuaj yeem muab lub zog pabcuam thaum tus tsav tsheb tig lub kauj, ua kom lub tsheb tig tau yooj yim dua thiab ua rau kev tsav tsheb zoo dua thiab nyab xeeb.
