Electro Hydraulic Power Steering Pump Assemby
Lub zog hluav taws xob ob lub tshuab hluav taws xob yog lub siab -kev nyab xeeb rov ua dua lub kauj tsheb sib dhos tshwj xeeb tsim rau lub zog tshiab kev lag luam tsheb suav nrog cov tsheb npav hluav taws xob, hnyav- cov tsheb thauj khoom thiab tsheb huv. Nws siv ob lub- winding ruaj khov hlau nplaum synchronous lub cev muaj zog nrog lub twj tso kua mis hydraulic vane, nruab nrog ywj siab siab -voltage thiab qis-voltage tswj systems los daws qhov kev nyab xeeb ntawm kev ua tiav ntawm kev poob ntawm kev pab cuam los ntawm siab -voltage fais fab tuag ntawm lub tsheb.
Hauj lwm lawm
Yog tias koj tab tom nrhiav rau lub tshuab hluav taws xob hydraulic fais fab steering twj tso kua mis, txais tos rau cov lag luam wholesale khoom los ntawm peb lub hoobkas. Raws li ib qho ntawm cov ua lag luam thiab cov muag khoom nyob rau hauv Suav teb, peb yuav muab koj cov kev pabcuam zoo tshaj plaws thiab xa khoom sai. Tam sim no, xyuas cov lus hais nrog peb tus neeg muag khoom.
Electro Hydraulic Fais Fab Steering Pump Assembly
Khoom Description
Lub tshuab hluav taws xob lub cev muaj zog EHPS yog kev sib xyaw ua ke ntawm "tsav lub cev muaj zog + kauj hydraulic lub zog twj tso kua mis". Nws yog tsav los ntawm lub cev muaj zog es tsis txhob siv lub cav ib txwm muaj. Nws muab steering hydraulic siab rau hybrid tsheb npav thiab hluav taws xob tsheb npav. Nws yog lub hwj chim qhov chaw thiab cov ntsiab lus tseem ceeb ntawm lub kauj tsheb.
Tsav los ntawm ib puag ncig thiab siab - ua haujlwm ruaj khov hlau nplaum synchronous lub cev muaj zog, lub kauj twj tso kua mis txhim kho kev sib khi thiab kev ntseeg siab;
Kev siv du, cuam tshuam -cov ntaub ntawv pov thawj hloov tau yooj yim rau kev xa hluav taws xob zoo heev txhim kho lub neej kev pab cuam;
Qhov kev tiv thaiv tag nrho ncav cuag IP67 thiab siv ob chav rwb thaiv tsev tsim los xyuas kom meej tias tsis muaj kev sib txuas ntawm lub cev muaj zog thiab cov roj twj tso kua mis;
Lub tsev nyob hauv lub cev muaj zog thiab lub twj tso kua mis lub tog raj kheej yog txhua yam ua los ntawm aluminium alloy, uas muaj cov khoom zoo xws li tsis tshua muaj suab nrov, lub teeb yuag thiab ceev cov cua sov dissipation.
| High voltage module lub cev muaj zog tsis muaj (controller 400-700VDC) | |||
| Motor & Controller Model | EHPS-38CBJJNF01-010 | ||
| Lub cev muaj zog Rated Voltage (VAC) | 380 | Temperature Control Resistor Hom | Tsis muaj |
| Rated zog (kW) | 5 | Rated Ceev (r/min) | 1500 |
| Cov zis siab tshaj plaws (kW) | 10 | Rated Zaus (Hz) | 100 |
| Induced Voltage ntawm Rated Speed (VAC) | 286.1 | Number of Motor Poles | 8 tus ncej (4 khub ncej) |
| Rated Phase Tam sim no (A) | 11 | Kab Resistance (Ω) (ntawm 20 degree) | 1.45 |
| Peak Phase tam sim no (A) | 23 | Lub luag haujlwm Cycle | S2-3 feeb |
| D-Axis Inductance (mH) | 8.035 | Rated Efficiency (%) | Ntau dua lossis sib npaug li 92% |
| Q-Axis Inductance (mH) | 22.08 | Rwb thaiv tsev qib | Chav Kawm H |
| Rated Torque (Nm) | 31.83 | Qib tiv thaiv | IP68 |
| Peak Torque (Nm) | 63.7 | Txoj kev txias | Ntuj cua txias |
| Kev nrawm nrawm (r / min) | 600-1800 | Ambient Kev Ua Haujlwm Kub | -40 ~ +85 degree |
| Hom Tsav | SVC sensorless hlau nplaum ruaj khov synchronous lub cev muaj zog | ||
| Tsawg voltage module lub cev muaj zog tsis muaj (24VDC) | |||
| Peak zog (kW) | 2.5 | Rated ceev (r / min) | 1200 |
| Inductive Current ntawm Rated Speed (VAC) | 14.25 | Rated zaus (Hz) | 80 |
| Peak Phase tam sim no (A) | 145 | Tus naj npawb ntawm cov ncej motors | 8 tus ncej (4 khub ncej) |
| D-Axis Inductance (mH) | 0.03877 | Hlau tsis kam (Ω) | 23 |
| Q-Axis Inductance (mH) | 0.09948 | Lub luag haujlwm voj voog | S2-3 feeb |
| Peak Torque (Nm) | 23.8 | ambient kub ua haujlwm | -40 ~ +85 degree |
| Hom Tsav | Cov hlau nplaum ruaj khov synchronous | ||
| 24V EPS lub cev muaj zog maub los technical parameters | ||
| Yam khoom | Tsis muaj | Sau ntawv |
| Peak zog (kW) | 2.5 | |
| Peak Output Tam sim no (A) | 150 | Qhov cua zoo |
| Peak Tam sim no ua hauj lwm lub sij hawm (s) | 60 | Qhov cua zoo |
| Tus neeg nqa khoom zaus (Hz) | Ntau tshaj 10K | |
| Tswj fais fab mov Input Voltage Range (V) | 9-36 | |
| Fais fab mov Input Voltage Range (V) | 16-32 | |
| Rated voltage (V) | 24 | |
| Cov zis zaus (Hz) | 0-250 | |
| Txoj kev txias | Ntuj cua txias | |
| Kev ntsuas IP | IP68 | |
| Cia Kub | -40 ~ +85 degree | |
 |
 |
 |
Cov khoom yuav tsum muaj kev ruaj ntseg
1. Tus qauv tsim qauv ua tau raws li qhov yuav tsum tau ua ntawm Clause 3.9 ntawm GB17675-1999 "Cov Lus Qhia Tseem Ceeb rau Automotive Steering Systems," stably xav tau lub sijhawm maneuvering tsis pub dhau 4 vib nas this nyob rau hauv ib txwm muaj thiab tsis pub ntau tshaj 6 vib nas this thaum lub hwj chim kauj tsis ua haujlwm.
2. Tus qauv tsim qauv ua tau raws li cov kev xav tau ntawm cov khoom siv hluav taws xob ntawm Clause 4.5.2 ntawm BMGZ-307-01 "Kev Nyab Xeeb Kev Nyab Xeeb rau Kev Siv Hluav Taws Xob." Tshwj xeeb, yog tias muaj qhov xwm txheej txawv txav uas xav tau kev sib txuas ntawm Class B high-voltage fais fab rau tag nrho lub tsheb thaum lub sijhawm ua haujlwm, lub kauj tsheb yuav tsum tuav lub kauj fais fab lossis yam tsawg kawg tswj lub kauj fais fab rau 30 vib nas this ntawm qhov nrawm dua 5 km / h.
Cov ntsiab lus tseem ceeb: Kev siv ob lub- txoj hauv kev tau txais los muab lub zog tsav. Thaum siv lub tsheb, yog tias muaj ib qho kev tivthaiv nyob rau hauv lub siab -voltage system malfunctions, thaum muaj xwm ceev steering yuav ua tau tiav los ntawm lub low-voltage system, zoo heev txhim khu kev ruaj ntseg ntawm lub kauj. High -voltage low voltage switching yog millisecond-theem, tsis muaj qhov pom kev lag luam lossis xav tsis thoob hauv kev xav, ua rau muaj kev hloov pauv yooj yim thiab du yam tsis muaj kev rov qab los.

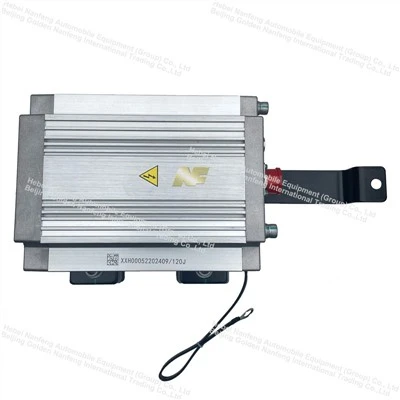

Products Detail duab
 |
 |
 |
 |
Cov khoom siv
Cov neeg caij npav
Tsheb Hom: 6-18 meter ntshiab hluav taws xob lub nroog tsheb npav, tsheb npav neeg ncig tebchaws, tsheb thauj mus los, tsheb thauj mus los hauv tshav dav hlau
Cov ntsiab lus ua haujlwm mob: nquag pib- nres voj voog, qis- nrawm tig nyob rau hauv qhov chaw, lub zog hluav taws xob lub tshuab hluav taws xob contactor tsis ua haujlwm, siab-voltage fais fab poob vim kev sib tsoo, kev them nyiaj cuam tshuam; kauj yuav tsum tau guaranteed nyob twj ywm haumxeeb.
Tshiab Zog Hnyav Trucks / Tsheb laij teb / Pob pov tseg Truck
Hom Lub Tsheb: Cov tsheb thauj khoom siv hluav taws xob ntshiab, tsheb laij teb semi-trailers, tsheb sib tov, tsheb mining, hydrogen- cov tsheb thauj khoom hnyav
Vim li cas thiaj tsim nyog: Complex high-voltage circuits, tseem ceeb kev co thiab pob, siab -voltage rwb thaiv tsev yuav tsis ua hauj lwm; tag nrho loaded hnyav 30-80 tons; tsis muaj lub hwj chim kauj, lub kauj yuav ua tsis tau kiag li, ua rau muaj kev nyab xeeb tseem ceeb.
Kev sib txuam tshwj xeeb: Tsawg-voltage roj teeb muaj peev xwm Ntau dua lossis sib npaug ntawm 180Ah, nruab nrog qis-voltage stabilizing thiab tiv thaiv- thim rov qab them module los tiv thaiv siab -voltage winding-induced voltage los ntawm kev puas tsuaj tsawg-voltage hluav taws xob Cheebtsam.
