Automotive Electronic Water Pump

Yog tias koj tab tom nrhiav rau automotive hluav taws xob dej twj tso kua mis, txais tos rau cov khoom muag los ntawm peb lub hoobkas. Raws li ib qho ntawm cov ua lag luam thiab cov muag khoom nyob hauv Suav teb, peb yuav muab koj cov kev pabcuam zoo tshaj plaws thiab xa khoom sai. Tam sim no, xyuas cov lus hais nrog peb tus neeg muag khoom.



Automotive electronic dej twj tso kua mis



Lub tshuab hluav taws xob hauv lub twj tso kua dej yog lub twj tso kua mis ntse uas tau tsav thiab tswj los ntawm lub tshuab hluav taws xob tswj hluav taws xob (ECU). Nws yog ib qho tseem ceeb ntawm lub tshuab cua txias tshuab, uas muaj lub cev muaj zog, lub twj tso kua mis lub cev, cov tswj, thiab cov qauv sib khi, hloov cov twj tso kua mis ib txwm siv los ntawm lub cav siv.





Lub tshuab hluav taws xob hauv lub twj tso kua mis feem ntau yog siv rau hauv lub tshuab hluav taws xob lub cav txias kom tsav cov cua txias, nqus thiab tshem tawm cov cua kub ntau dhau los ntawm cov khoom tseem ceeb xws li lub cav, roj teeb, lub cev muaj zog, thiab hluav taws xob tswj qhov system. Cov cua sov no yog tom qab ntawd xa mus rau cov huab cua sab nraud los ntawm cov khoom siv hluav taws xob, tiv thaiv kev tiv thaiv kev ua haujlwm tsis zoo, hnav nrawm, lossis txawm tias muaj kev puas tsuaj vim overheating, ua kom ruaj khov thiab ua haujlwm zoo ntawm txhua lub tsheb ntawm qhov ntsuas kub.



Lub zog tshiab tsheb yog cov neeg siv khoom siv hluav taws xob cov twj tso kua mis. Lub tsheb hluav taws xob ntshiab thiab ntsaws- nyob rau hauv cov tsheb hybrid feem ntau yog nruab nrog ntau lub tshuab hluav taws xob dej rau kev tswj xyuas cov cua sov xws li roj teeb, lub cev muaj zog, kev tswj hluav taws xob, thiab cua txias. Hauv cov tsheb siv roj ib txwm muaj, tshwj xeeb tshaj yog cov uas muaj siab - thev naus laus zis thiab turbocharged cav, cov twj siv hluav taws xob tau maj mam hloov cov twj siv dej. Automotive electronic water twj tso kua mis yog cov khoom tseem ceeb rau kev ua tiav cov kev tswj xyuas thermal hauv lub tsheb, ua kom muaj txiaj ntsig zoo, lub zog -txuag, thiab txhim khu kev lag luam ntawm cov cua txias los ntawm kev tswj hluav taws xob ncaj qha. Raws li kev lag luam automotive txav mus rau kev siv hluav taws xob thiab kev txawj ntse, kev siv cov twj siv hluav taws xob hluav taws xob tau nce zuj zus.

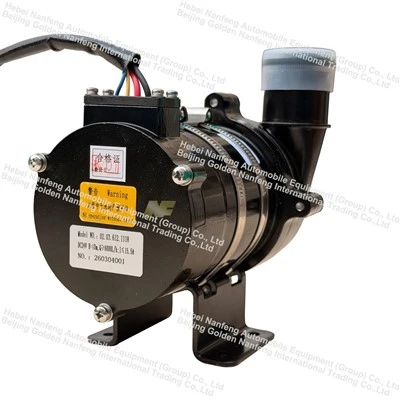

Hauv qab no, peb xav kom peb 350W automotive hluav taws xob dej twj tso kua mis.



Rated voltage	DC 24 V
Kev khiav hauj lwm voltage	16V~32V
Rated zog	350W
Rated kev ua haujlwm	Ntawm lub taub hau ntawm 12m, qhov siab tshaj plaws txaus siab Ntau dua lossis sib npaug ntawm 5000L / h, tam sim no Tsawg dua lossis sib npaug rau 15.5A
Lub taub hau siab kawg	Ntau dua lossis sib npaug li 13m
Cia kub	-50℃~ 125 degree
Ua haujlwm kub ambient	-40℃~ 100 degree
Tso cai nruab nrab	Antifreeze
Pump lub neej	Ntau tshaj lossis sib npaug li 20000 teev
Chav kawm tiv thaiv	IP68
Mating connector qauv	PIB 1-1418390-1
Suab nrov	Tsawg dua lossis sib npaug li 60dB ntsuas ntawm qhov deb ntawm 1 meter
Cov lus piav qhia ua haujlwm	Rov qab polarity tiv thaiv, qhuav-kev tiv thaiv khiav, xauv-rotor tiv thaiv, tiv thaiv overvoltage



Dab tsi yog qhov zoo ntawm automotive electronic water pumps piv rau txhua yam dej twj?



* Precise Control thiab High Energy Efficiency: Muaj peev xwm tswj tau cov dej txias txaus raws li qhov xav tau tiag tiag, tsis txhob siv lub zog tsis tsim nyog thiab ua rau qis zog siv dua li cov twj siv dej.
* Txhim kho Kev Ua Haujlwm: Ua kom sov- txheej txheem nce, pab txo qis kev siv roj thiab emissions thaum pib txias.
* Kev ntseeg siab thiab kev ua neej ntev: Siv hluav taws xob ncaj qha tsav, txo cov khoom siv hluav taws xob thiab kev sib txhuam, txo qis kev pheej hmoo ntawm kev xau, thiab txuas ntxiv kev pab cuam lub neej.

* Kev tso chaw yooj yim thiab tsis muaj suab nrov: me me me me, tso cai rau qhov chaw yooj yim installation, yooj yim rau kev teeb tsa lub tsheb, thiab ua haujlwm nrog lub suab qis.

* Kev txawj ntse kev koom ua ke: Cov kev tswj tau yooj yim (PWM, tsheb npav) thiab ntau yam kev tiv thaiv kev ua haujlwm (dhau-kub, dhau-voltage, tshaj-tam sim no, thiab lwm yam).





Cov txheej txheem ua haujlwm ntawm automotive electronic water twj tso kua mis:



* Lub tsheb ECU, raws li cov lus qhia tawm tswv yim los ntawm cov dej ntsuas kub thiab lub cav thauj khoom, kho lub voj voog ua haujlwm ntawm PWM cov teeb liab thiab xa cov lus qhia rau tus tswj hauv lub twj tso kua mis hluav taws xob.



* Tus maub los, raws li cov lus qhia, tswj lub cev muaj zog ceev, tsav lub impeller tig. Qhov qis-voltage cheeb tsam yog tsim nyob rau hauv nruab nrab ntawm lub impeller, kos duab nyob rau hauv coolant, uas yog ces tshem tawm los ntawm lub qhov hluav taws xob los ntawm centrifugal quab yuam, ua kom lub coolant ncig.



* Lub ECU tuaj yeem tswj xyuas lub twj tso kua mis ceev ceev thiab kho tus nqi dej txias raws li lub cav tiag tiag - lub sijhawm ua haujlwm. Piv txwv li, tus nqi ntws yog txo thaum lub caij txias pib ua kom sov- nce, thiab nce thaum lub sij hawm thauj khoom siab los txhim kho cov cua sov.



*Automotive electronic water pumps muaj tus kheej-kev kuaj mob muaj peev xwm, tiv thaiv cov xwm txheej txawv txav xws li dhau-kub, dhau-voltage, dhau-tam sim no, thiab idling, thiab pub rov qab cov ntaub ntawv txhaum cai rau ECU lossis ceeb toom rau tus neeg tsav tsheb ntawm lub tswb nrov dashboard.









Common Automotive Electronic Water Pumps:



* Lub Cav Txias Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob: Siv nyob rau hauv lub voj voog cua txias ntawm cov cav hauv cov roj av lossis cov tsheb sib xyaw.
* Peb-Tsev Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob: Hauv lub tsheb tshiab, tshwj xeeb yog siv rau lub voj voog txias ntawm lub roj teeb, tsav lub cev muaj zog, thiab lub cev muaj zog tswj.
* Turbocharger Cooling Water Pump: Siv nyob rau hauv qhov cua txias ntawm lub turbocharger.
* Cua Conditioning System Circulating Water Pump: Siv nyob rau hauv automotive cua txias thermal tswj system.
