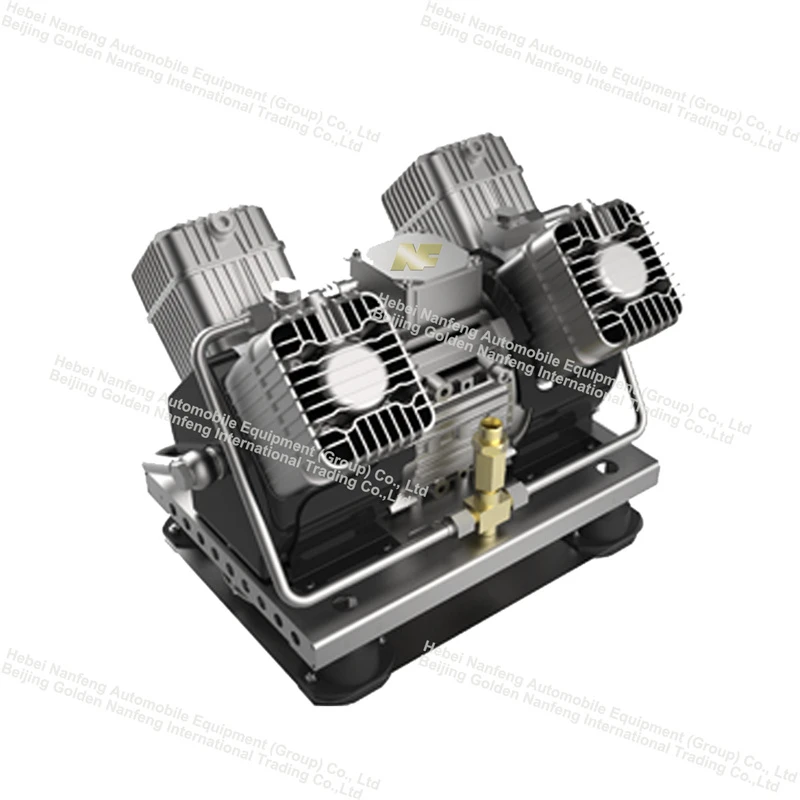

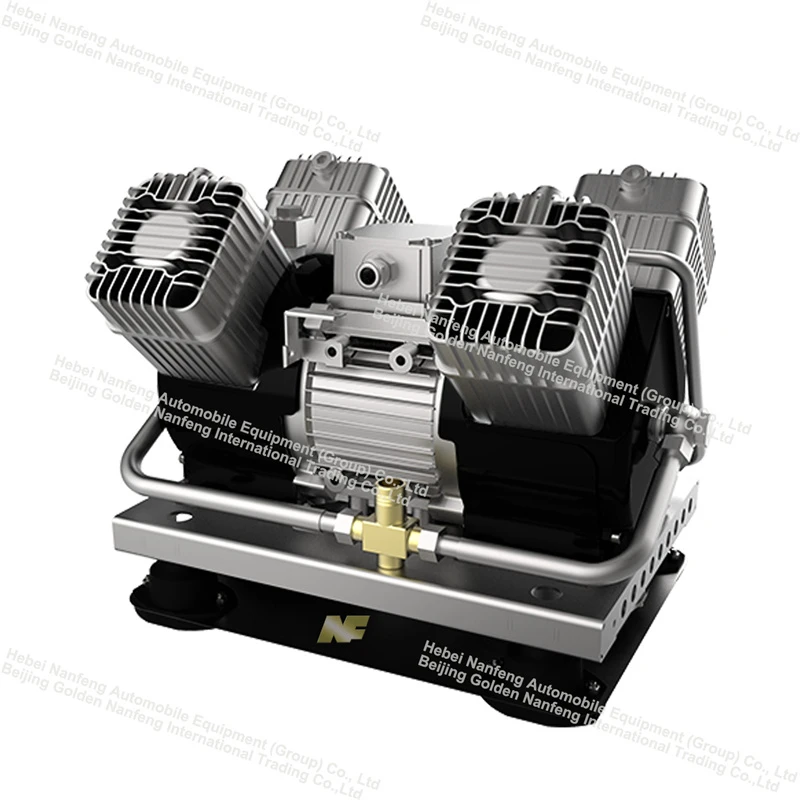

Silent Piston Cua Compressor
Puas yog koj tab tom nrhiav cov tshuaj compressed cua uas xa cov roj - dawb huv, ib puag ncig tus phooj ywg, thiab kev ua haujlwm ruaj khov rau koj cov txheej txheem tseem ceeb? Peb Cov Roj- pub dawb Piston Air Compressor yog tsim los ua kom tau raws li cov kev xav tau nruj ntawm lub ntiaj teb siab - kev siv huab cua huv huv, txhawb kev lag luam thoob ntiaj teb nrog kev huv, zoo, thiab qis- kev tu cua compressed.
Hauj lwm lawm
Yog tias koj tab tom nrhiav rau lub twj tso kua mis piston cua compressor, txais tos rau cov khoom lag luam wholesale los ntawm peb lub hoobkas. Raws li ib qho ntawm cov ua lag luam thiab cov muag khoom nyob rau hauv Suav teb, peb yuav muab koj cov kev pabcuam zoo tshaj plaws thiab xa khoom sai. Tam sim no, xyuas cov lus hais nrog peb tus neeg muag khoom.

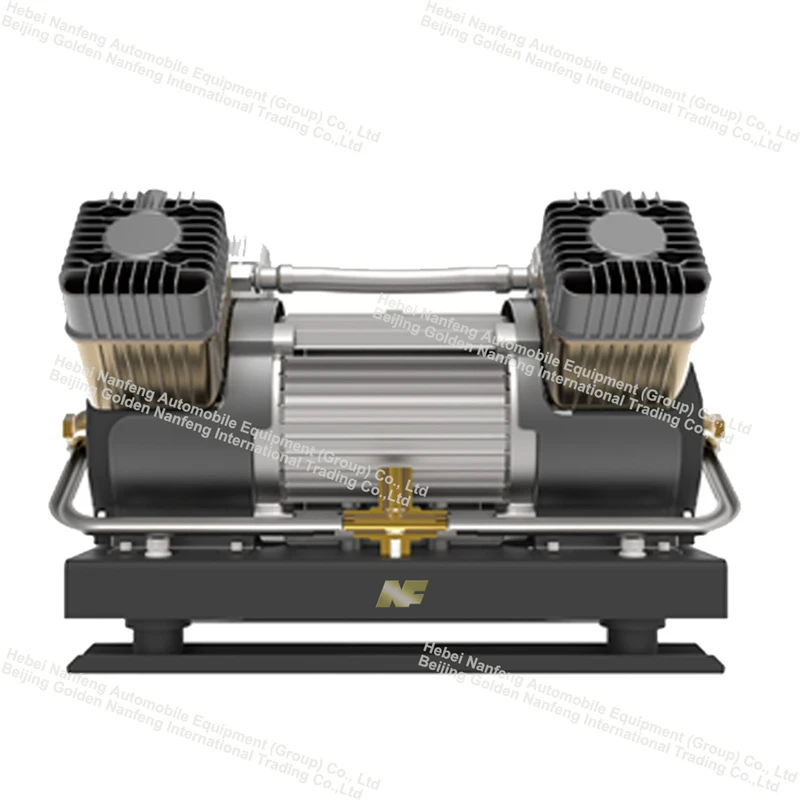

Silent Piston Cua Compressor

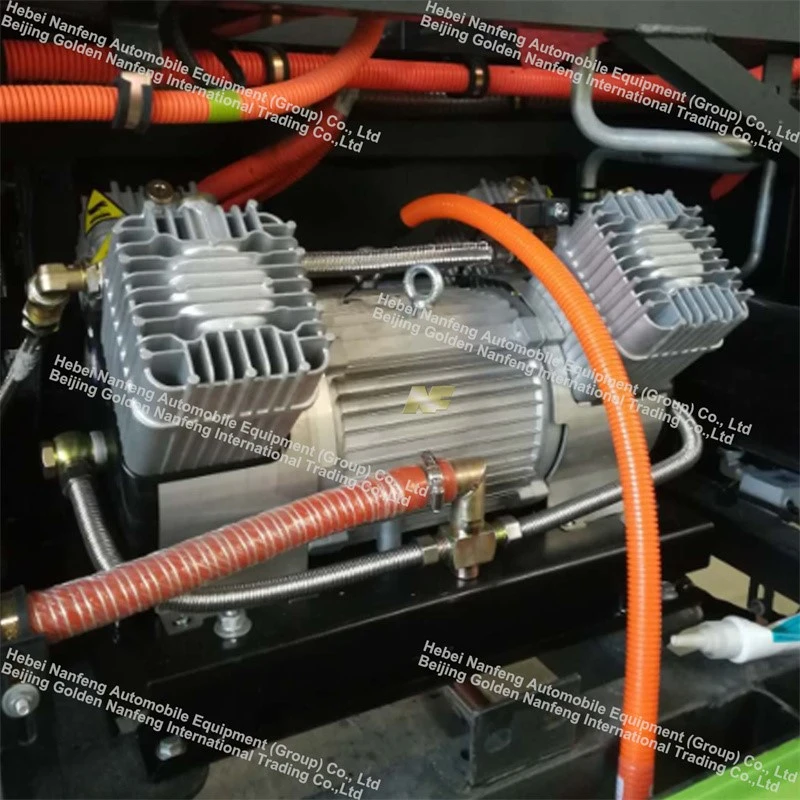

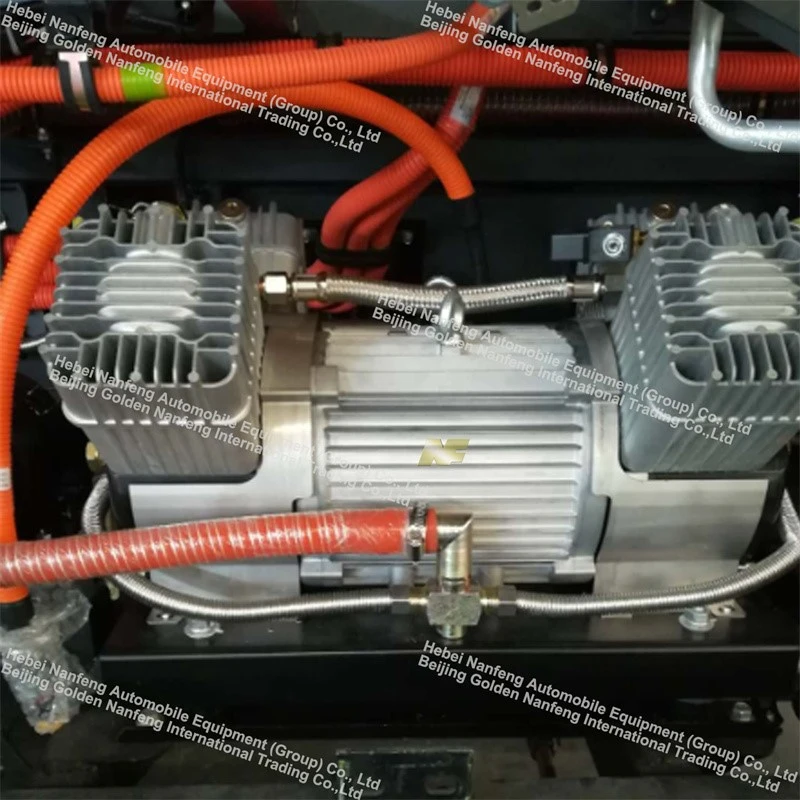

Roj- pub dawb piston hluav taws xob cua compressors hloov cov tsoos roj tsheb cav siv cua compressors. Lawv tsis xav tau cov roj lubrication thiab tau tsim tshwj xeeb los muab cov cua compressed huv rau lub tsheb cua siab braking, cua ncua kev kawm ntawv, lub qhov rooj pneumatic, clutch boosters, airbag rooj, thiab lwm yam. Lawv tam sim no yog cov siv dav tshaj plaws thiab tus nqi ntau tshaj -cov qauv tshiab lub zog cua compressor.

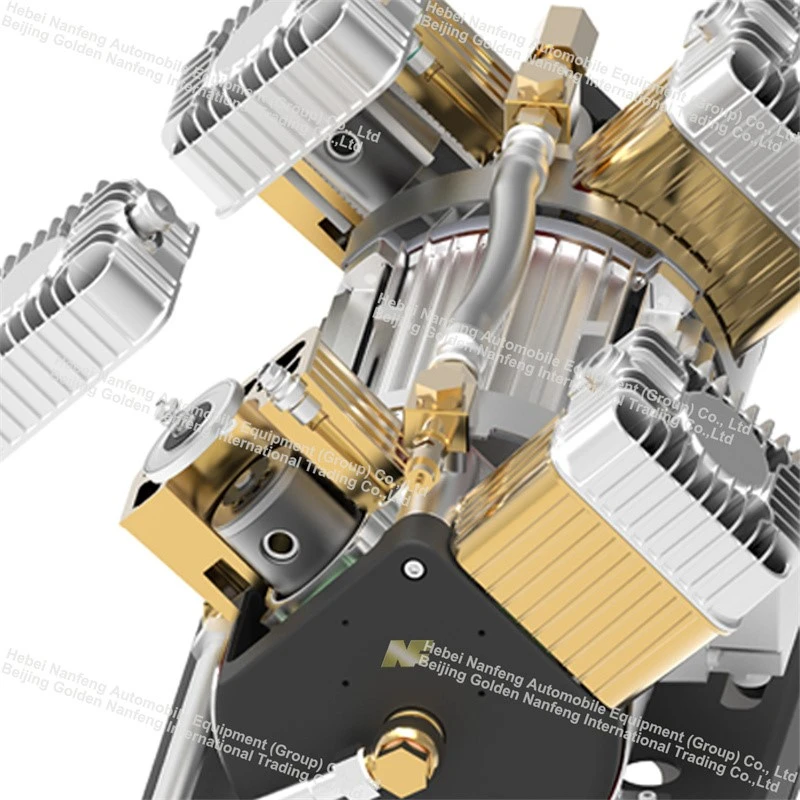

Zuag qhia tag nrho kev muaj pes tsawg leeg
Tsav lub cev muaj zog:Feem ntau yog cov hlau nplaum ruaj khov synchronous motors, sib xws nrog 24V / 48V tsis tshua muaj hluav taws xob thiab 300-800V high voltage platforms, nrog kev ua haujlwm siab thiab kub ntau yam.
Compression unit:lub tog raj kheej, roj-piston dawb, piston rings, noj thiab tso pa valve daim hlau, crankshaft, txuas pas nrig, vaj tse.
Roj-cov khoom tseem ceeb dawb:Ua los ntawm graphite rings, polytetrafluoroethylene, hnav-cov khoom siv hluav taws xob tiv thaiv hluav taws xob, thiab cov khoom siv txheej txheej, cov khoom siv no hloov cov roj lubrication, muab kev hnav tsis kam, kub tsis kam, thiab tsis muaj roj seem.
Electronic Control Tsav Unit:Ua tau -hauv MCU maub los, txhawb nqa CAN tsheb npav thiab tsheb VCU kev sib txuas lus, thiab muaj kev sib txuas lus, hluav taws xob, hluav taws xob, hluav taws xob, hluav taws xob, khoom siv hluav taws xob, thiab kev tiv thaiv hluav taws xob.
Cua txias system:cua txias cua txias (ntxuam + cua sov dab dej fins), qee cov qauv siab -kawg siv kua txias.
Air system accessories:cua lim, nqus muffler, ib - txoj kev valve, siab sensor, unloading valve, shock{1}}absorbing ko taw.

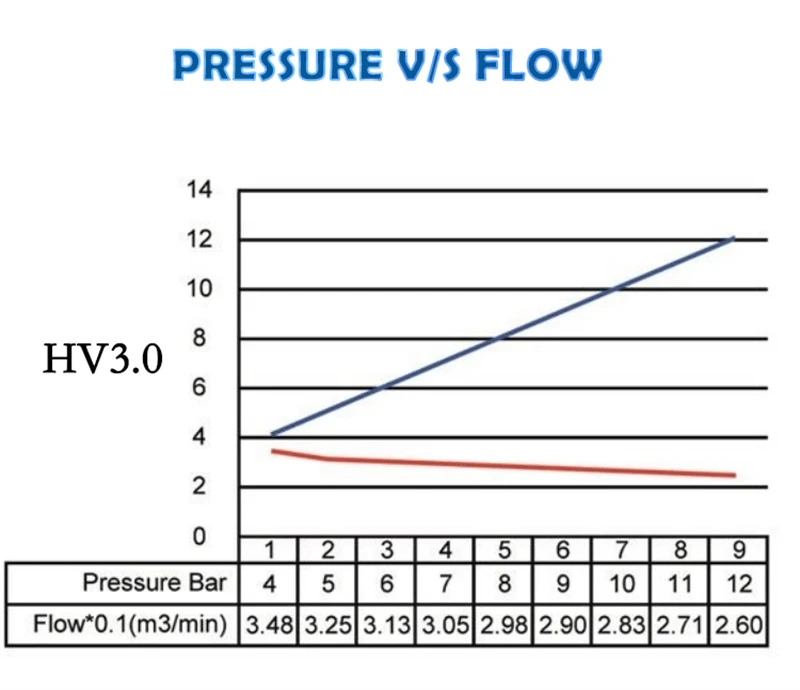

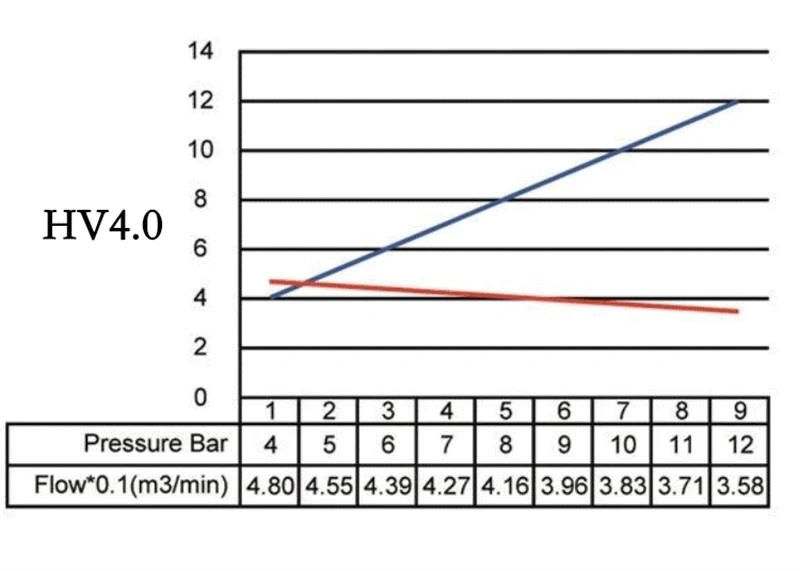

Silent Piston Cua Compressor parameter
| Qauv | HV 2.2 | HV 3.0 | HV 4.0 |
| Rated zog (kw) | 2.2 | 3.0 | 4.0 |
| FAD (m³ / min) | 0.20 | 0.28 | 0.38 |
| Ua haujlwm siab (bar) | 10 | ||
| Max. Siab (bar) | 12 | ||
| Qib tiv thaiv | IP67 | ||
| Cua Inlet Connector | φ25 | ||
| Cua qhov hluav taws xob Connector | M22x1.5 | ||
| Ambient Temp. (degree) | 65 | ||
| Max. Cua txias Temp. (degree) | 110 | ||
| Kev vibration (mm / s) | Tsawg dua los yog sib npaug li 28 | ||
| Lub suab nrov dB(a) | Tsawg dua los yog sib npaug li 75 | ||
| Qib cais | H | ||
Kev Tsim Kho Kev Lag Luam
1. Khoom siv kho dua tshiab:Kev hnav siab dua- tiv taus tus kheej- cov khoom siv sib xyaw ua ke txuas ntxiv txij nkawm- lub neej dawb;
2. Txias upgrade:Los ntawm huab cua txias mus rau cov kua txias ua ke, ua rau kom zoo dua cua sov dissipation thiab me me;
3. Intelligent Electronic Control:Kev tswj hwm qhov sib txawv ntawm qhov nrawm thiab ntawm -xav kom huab cua ntim sib piv txo tag nrho lub tsheb siv zog;
4. Kev sib xyaw ua ke siab:Integrated modular tsim ntawm lub cev muaj zog, hluav taws xob tswj, thiab lub ntsiab chav tsev.
Cov qauv siv tseem ceeb
Cov tsheb thauj khoom hluav taws xob, mini- tsheb thauj khoom, thiab tsheb thauj khoom siv hluav taws xob tshiab
Minibuses thiab cov neeg nyob deb nroog minibuses
Cov tsheb tshwj xeeb lub zog tshiab xws li cov tsheb huv si, cov tsheb thauj dej, thiab cov tsheb thauj khoom khib nyiab
Hybrid engineering tsheb, tsheb thauj khoom pov tseg, thiab tshwj xeeb - lub hom phiaj tsheb
